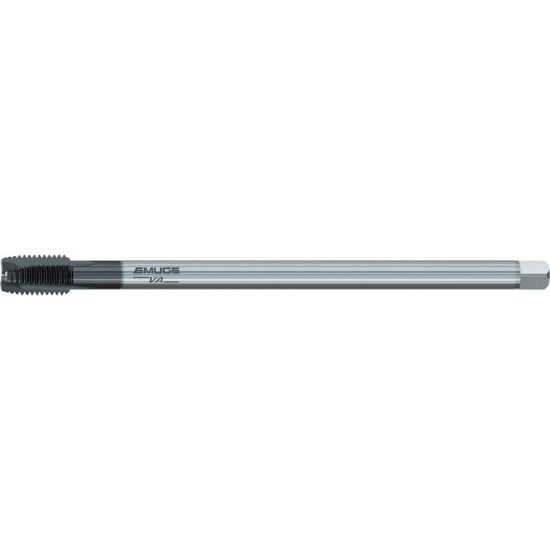

EMUGE C220C300.0060 Tap Plug M6-1.00MM 6H Metric DIN/DIN HSSE GLT-1

ISO: C220C300.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC220C300.0060
Delivery date: 3-5 days
$99.17

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Coating GLT-1
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Overall Len 6.2992 160.00MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Style Cut Spiral Point
Flute Direction STRAIGHT
Thread Type Metric
Tap Type Plug
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1770 4.50MM - #16
Length Type Long
Tool Material Steel
Tap Chamfer 4P-5P
Thread Size M6
Dimension Standard DIN/DIN
Thread Limit 6H
Tap Square 0.1910
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
