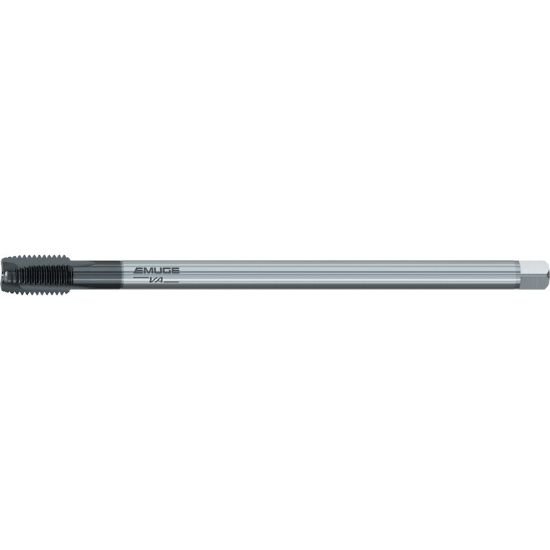

Picture of Emuge C220C300.0120 Tap Plug M20-2.50mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Emuge C220C300.0120 Tap Plug M20-2.50mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Part Number: EMUC220C300.0120 ISO: C220C300.0120
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M20 × 2.50MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157431
Vendor: Sussex Tool and Supply
$387.19

Description

EMUGE C220C300.0120 M20x2.50MM Cut Spiral Point Plug 4P-5P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 11.0236 280.00MM
Shank/Pilot Dia 0.6290 15.98MM
Thread Pitch 2.50MM
Thread Size M20
Tap Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Square 0.4890
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating GLT-1
Standards & Identification
Dimension Standard DIN/DIN
