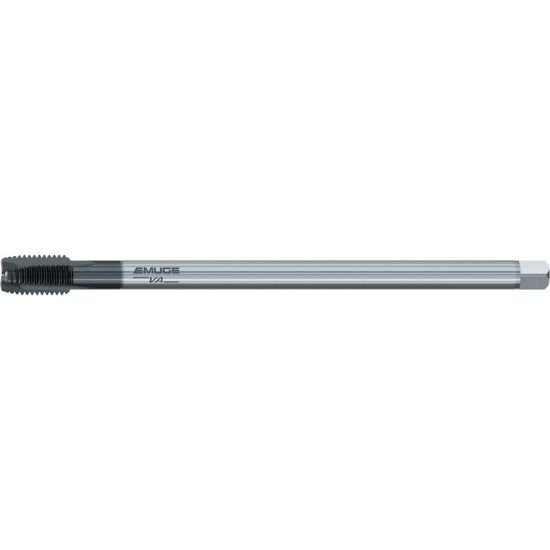

Picture of Emuge C220C300.0118 Tap Plug M18-2.50mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Emuge C220C300.0118 Tap Plug M18-2.50mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Part Number: EMUC220C300.0118 ISO: C220C300.0118

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157430
Vendor: Sussex Tool and Supply
$367.18
EMUGE C220C300.0118 M18x2.50MM Cut Spiral Point Plug 4P-5P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating GLT-1
Overall Length 9.8425 250.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5510 14.00MM
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M18
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Tap Square 0.3600
Tap Chamfer 4P-5P
