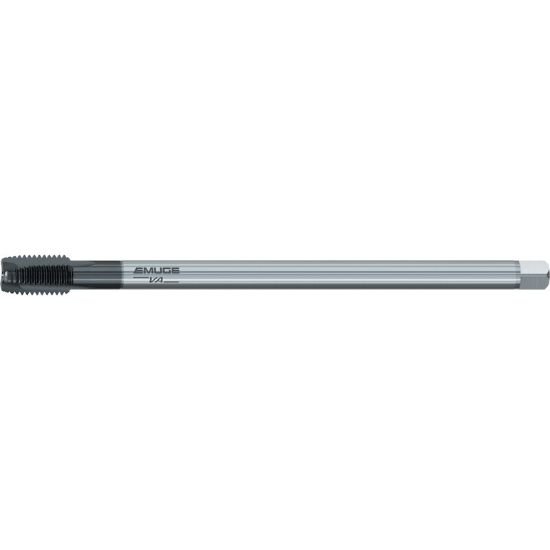

Picture of Emuge C220C300.0114 Tap Plug M14-2.00mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Emuge C220C300.0114 Tap Plug M14-2.00mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Part Number: EMUC220C300.0114 ISO: C220C300.0114
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$290.33
SKU: 1157428

Description

EMUGE C220C300.0114 M14x2.00MM Cut Spiral Point Plug 4P-5P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 8.8189 224.00MM
Shank/Pilot Dia 0.4330 11.00MM
Thread Pitch 2.00MM
Thread Size M14
Tap Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating GLT-1
Standards & Identification
Dimension Standard DIN/DIN
