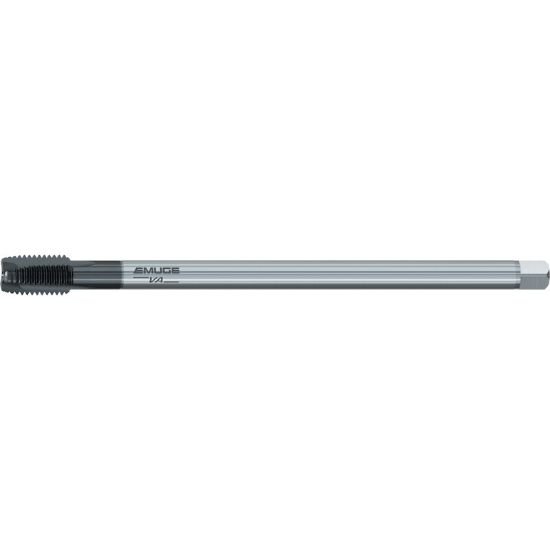

Picture of Emuge C220C300.0080 Tap Plug M8-1.25mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Emuge C220C300.0080 Tap Plug M8-1.25mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Part Number: EMUC220C300.0080 ISO: C220C300.0080
Looking for alternatives…
Find a drill for this tap M8 × 1.25MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157425
Vendor: Sussex Tool and Supply
$140.61

Description

EMUGE C220C300.0080 M8x1.25MM Cut Spiral Point Plug 4P-5P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 7.0866 180.00MM
Shank/Pilot Dia 0.2360 5.99MM
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2380
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating GLT-1
Standards & Identification
Dimension Standard DIN/DIN
