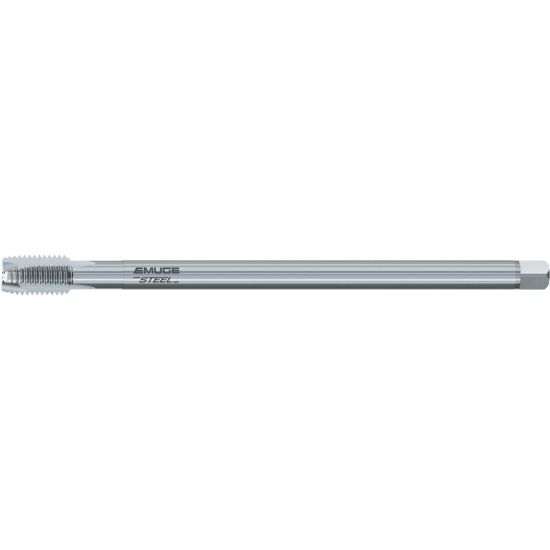

EMUGE C2208900.0120 Tap M20-2.50MM Plug Metric DIN/DIN 4P-5P HSSE

ISO: C2208900.0120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC2208900.0120
Delivery date: 3-5 days
$284.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.6290 15.98MM
Overall Len 11.0236 280.00MM
Thread Size M20
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Square 0.4890
Thread Pitch 2.50MM
Thread Type Metric
Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Type Plug
Thread Limit 6H
Length Type Long
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
