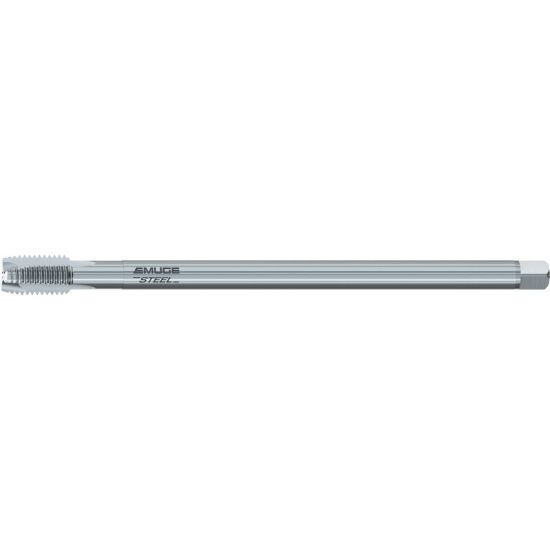

EMUGE C2208900.0118 Tap M18-2.50MM Plug Metric DIN/DIN 4P-5P HSSE

ISO: C2208900.0118

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC2208900.0118
Delivery date: 3-5 days
$314.58

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Through Hole Tapping, Plug Tapping, Tapping
Made In USA No
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DIN/DIN
Thread Size M18
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 2.50MM
Thread Type Metric
Flute Direction STRAIGHT
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Tap Type Plug
Tool Material Steel
Shank/Pilot Dia 0.5510 14.00MM
Tap Square 0.3600
Tap Chamfer 4P-5P
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 9.8425 250.00MM
Length Type Long
Thread Limit 6H
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
