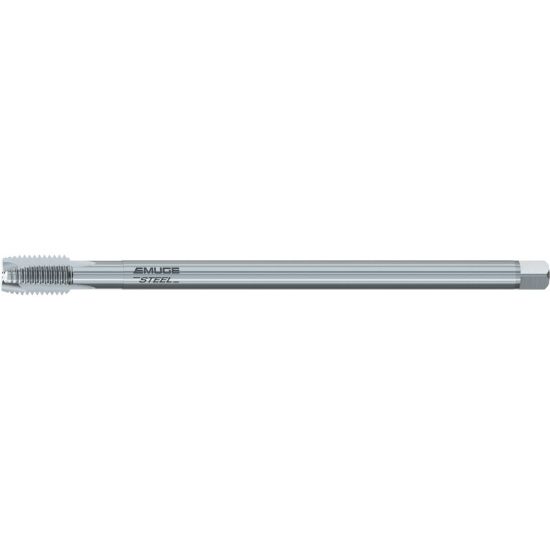

EMUGE C2208900.0116 Tap M16-2.00MM Plug Metric DIN/DIN 4P-5P HSSE

ISO: C2208900.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC2208900.0116
Delivery date: 3-5 days
$207.27

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Pitch 2.00MM
Flute Direction STRAIGHT
Overall Len 8.8189 224.00MM
Tap Type Plug
Tap Square 0.3600
Tap Chamfer 4P-5P
Dimension Standard DIN/DIN
Thread Limit 6H
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Thread Size M16
Tool Material Steel
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
