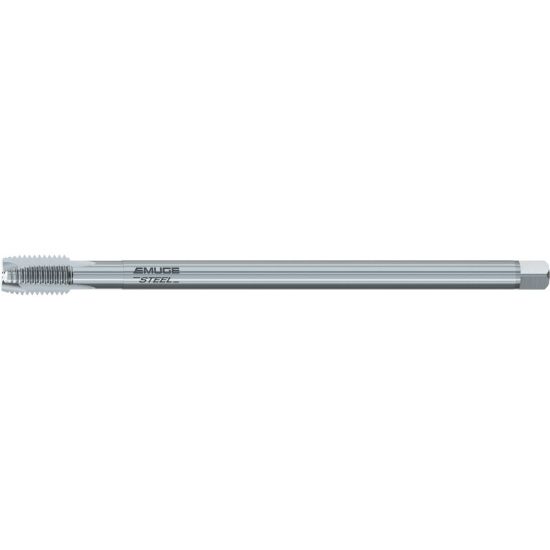

EMUGE C2208900.0112 Tap M12-1.75MM Plug Metric DIN/DIN 4P-5P HSSE

ISO: C2208900.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC2208900.0112
Delivery date: 3-5 days
$134.26

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Chamfer 4P-5P
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Thread Limit 6H
Length Type Long
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Thread Type Metric
Overall Len 8.8189 224.00MM
Tap Type Plug
Thread Pitch 1.75MM
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
