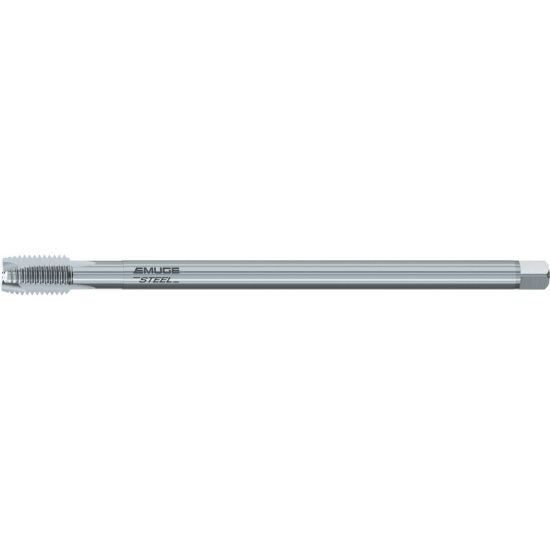

Picture of Emuge C2208900.0116 Tap M16-2.00mm Plug Metric DIN/DIn 4P-5P HSSE Pulley Long

Emuge C2208900.0116 Tap M16-2.00mm Plug Metric DIN/DIn 4P-5P HSSE Pulley Long

Part Number: EMUC2208900.0116 ISO: C2208900.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157403
Vendor: Sussex Tool and Supply
$210.98
EMUGE C2208900.0116 M16x2.00MM Cut Spiral Point Plug 4P-5P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 8.8189 224.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4720 11.99MM
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M16
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Square 0.3600
Tap Chamfer 4P-5P
