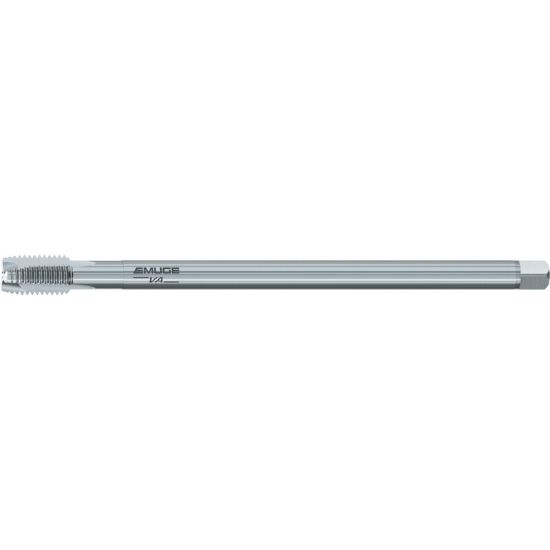

EMUGE C2203000.0120 Tap Plug M20-2.50MM 6H Metric DIN/DIN HSSE Nitride

ISO: C2203000.0120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC2203000.0120
Delivery date: 3-5 days
$289.39

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating Nitride
Dimensional Specifications
Dimension Standard DIN/DIN
Tap Square 0.4890
Thread Pitch 2.50MM
Thread Type Metric
Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Type Plug
Cut Rating <40HRC Steel, Stainless Steel
Thread Limit 6H
Length Type Long
Thread Size M20
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.6290 15.98MM
Overall Len 11.0236 280.00MM
Tap Style Cut Spiral Point
Tool Material Steel
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
