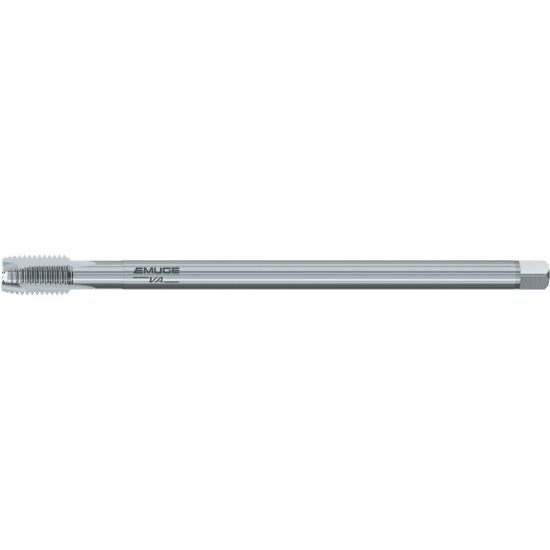

EMUGE C2203000.0116 Tap Plug M16-2.00MM 6H Metric DIN/DIN HSSE Nitride

ISO: C2203000.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC2203000.0116
Delivery date: 3-5 days
$215.18

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Coating Nitride
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 2.00MM
Flute Direction STRAIGHT
Overall Len 8.8189 224.00MM
Tap Type Plug
Thread Size M16
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Tool Material Steel
Tap Square 0.3600
Tap Chamfer 4P-5P
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
