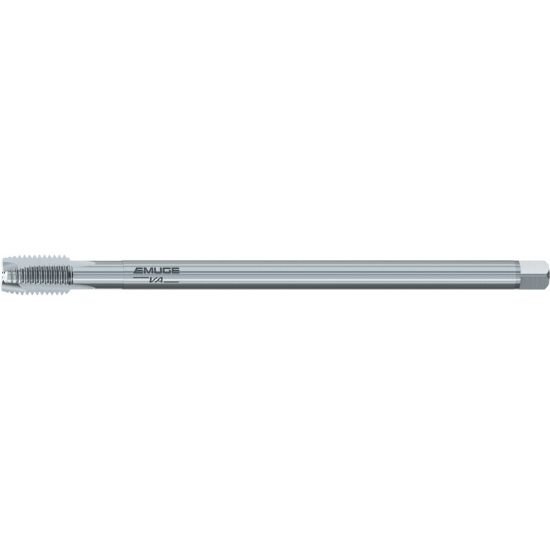

Emuge C2203000.0118 Tap M18-2.50mm Plug Metric DIN/DIn 4P-5P HSSE Nitride Pulley Long

Part Number: EMUC2203000.0118 ISO: C2203000.0118

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157422
$339.38
EMUGE C2203000.0118 M18x2.50MM Cut Spiral Point Plug 4P-5P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Nitride
Overall Length 9.8425 250.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5510 14.00MM
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M18
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Tap Square 0.3600
Tap Chamfer 4P-5P
