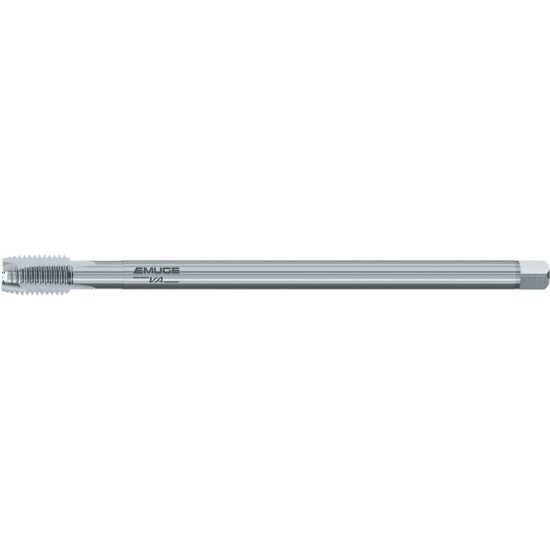

Emuge C2203000.0114 Tap Plug M14-2.00mm 6H Metric DIN/DIn HSSE Nitride Pulley Long

Part Number: EMUC2203000.0114 ISO: C2203000.0114
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$254.75
SKU: 1157420

Description

EMUGE C2203000.0114 M14x2.00MM Cut Spiral Point Plug 4P-5P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 8.8189 224.00MM
Shank/Pilot Dia 0.4330 11.00MM
Thread Pitch 2.00MM
Thread Size M14
Tap Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride
Standards & Identification
Dimension Standard DIN/DIN
