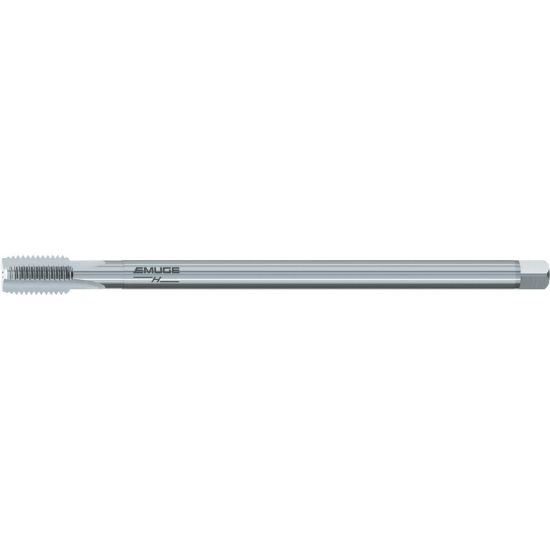

Emuge C2100501.0120 Tap M20-2.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE Nitride Pulley Long

Part Number: EMUC2100501.0120 ISO: C2100501.0120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157392
$296.01
EMUGE C2100501.0120 M20x2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating Nitride
Overall Length 11.0236 280.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6290 15.98MM
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M20
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Square 0.4890
Tap Chamfer 2.0P-3.0P
