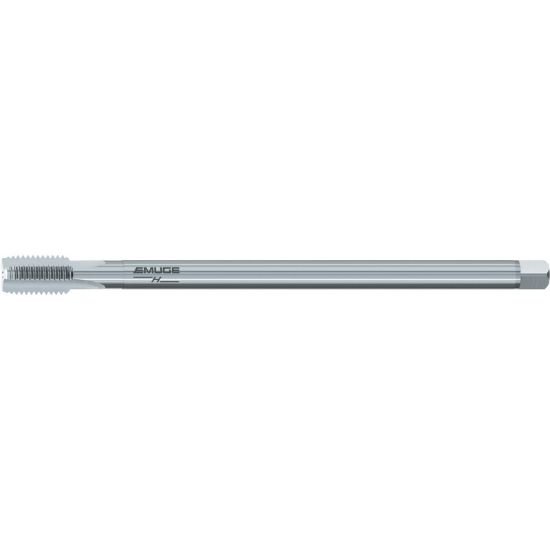

Emuge C2100501.0112 Tap M12-1.75mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE Nitride Pulley Long

Part Number: EMUC2100501.0112 ISO: C2100501.0112
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$157.97
SKU: 1157388

Description

EMUGE C2100501.0112 M12x1.75MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 8.8189 224.00MM
Shank/Pilot Dia 0.3540 8.99MM
Thread Pitch 1.75MM
Thread Size M12
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Square 0.2750
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride
Standards & Identification
Dimension Standard DIN/DIN
