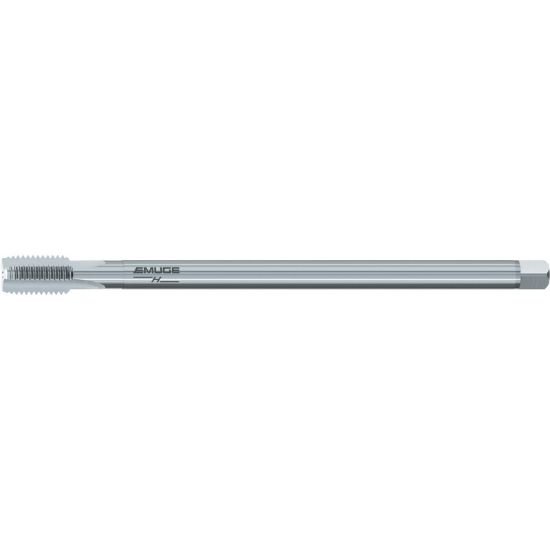

Emuge C2100501.0060 Tap Mod Bottom M6-1.00mm 6H Metric DIN/DIn HSSE Nitride Pulley Long
Emuge C2100501.0060 Tap Mod Bottom M6-1.00mm 6H Metric DIN/DIn HSSE Nitride Pulley Long
Part Number: EMUC2100501.0060 ISO: C2100501.0060
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
EMUGE
SKU:
1157385
Vendor:
Sussex Tool and Supply
$86.43
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
EMUGE C2100501.0060 M6x1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
MASSACHUSETTS
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE
Machine Side Connection Type
Tap Collet
Cut Rating
<48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Coating
Nitride
Overall Length
6.2992 160.00MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.1770 4.50MM - #16
Type Of Tool
Tap
Length Type
LONG
Performance Rating
High Performance
Thread Pitch
1.00MM
Thread Type
METRIC
Flute Direction
STRAIGHT
Thread Size
M6
Thread Limit
6H
Tap Style
Cut Spiral Flute
Tap Type
Mod Bottom
Dimension Standard
DIN/DIN
Tap Drill Range
0.1953 4.96MM - 0.2055 5.22MM
Tap Square
0.1910
Tap Chamfer
2.0P-3.0P
