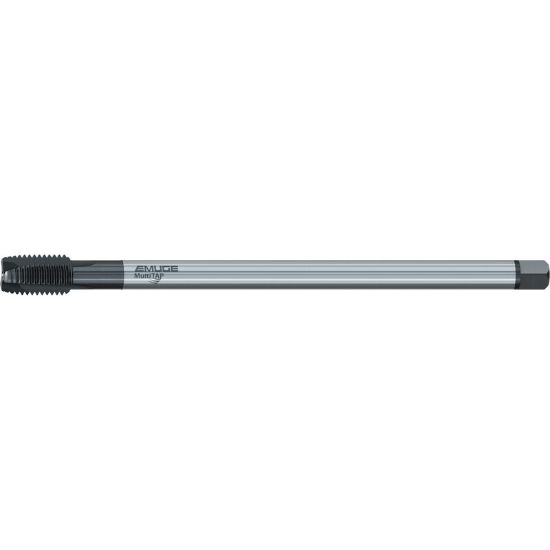

EMUGE C1667300.0114 Tap M14-2.00MM Plug Metric DIN/DIN 4P-5P HSSE Nitride + Steam Oxide

ISO: C1667300.0114

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC1667300.0114
Delivery date: 3-5 days
$219.00

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride + Steam Oxide
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Dimensional Specifications
Tap Chamfer 4P-5P
Thread Limit 6H
Length Type Long
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Shank/Pilot Dia 0.4330 11.00MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 2.00MM
Flute Direction STRAIGHT
Overall Len 8.8189 224.00MM
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Size M14
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
