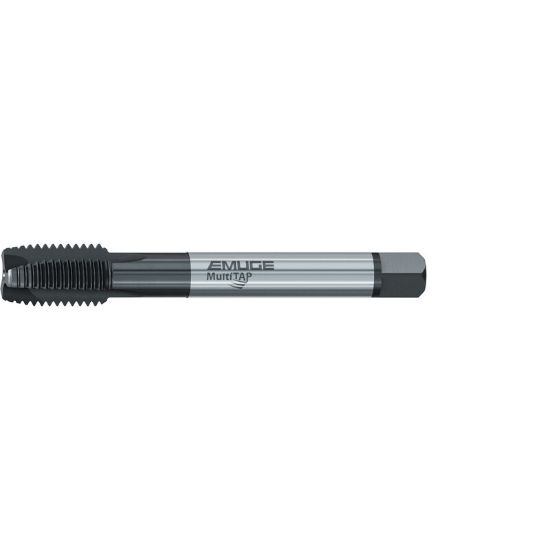

EMUGE C1577300.0124 Tap Plug M24-3.00MM 6H Metric DIN/DIN HSSE Nitride + Steam Oxide

ISO: C1577300.0124

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC1577300.0124
Delivery date: 3-5 days
$116.71

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Coating Nitride + Steam Oxide
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Size M24
Thread Pitch 3.00MM
Drill Range 0.8087 20.54MM - 0.8201 20.83MM
Tap Square 0.5700
Length Type Standard
Tool Material Steel
Shank/Pilot Dia 0.7080 17.98MM
Tap Chamfer 4P-5P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flute Direction STRAIGHT
Tap Type Plug
Thread Limit 6H
Overall Len 6.2992 160.00MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
