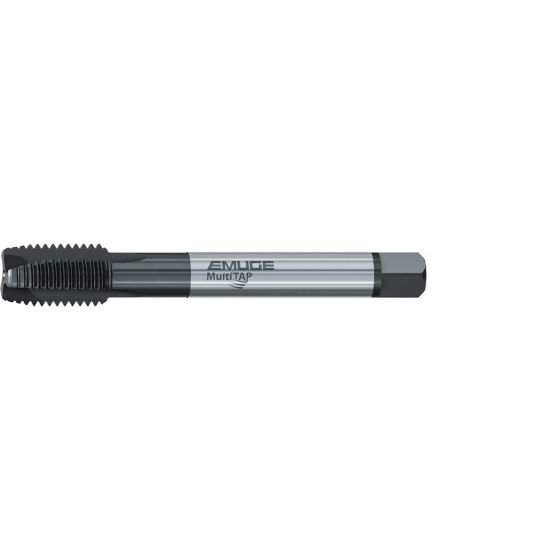

Picture of Emuge C1577300.0120 Tap Plug M20-2.50mm 6H Metric DIN/DIn HSSE Nitride + Steam Oxide

Emuge C1577300.0120 Tap Plug M20-2.50mm 6H Metric DIN/DIn HSSE Nitride + Steam Oxide

Part Number: EMUC1577300.0120 ISO: C1577300.0120
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M20 × 2.50MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157458
Vendor: Sussex Tool and Supply
$93.12

Description

EMUGE C1577300.0120 M20x2.50MM Cut Spiral Point Plug 4P-5P HSSE Nitride + Steam Oxide 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 5.5118 140.00MM
Shank/Pilot Dia 0.6290 15.98MM
Flutes/Inserts 3
Thread Pitch 2.50MM
Thread Size M20
Tap Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Square 0.4890
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard DIN/DIN
