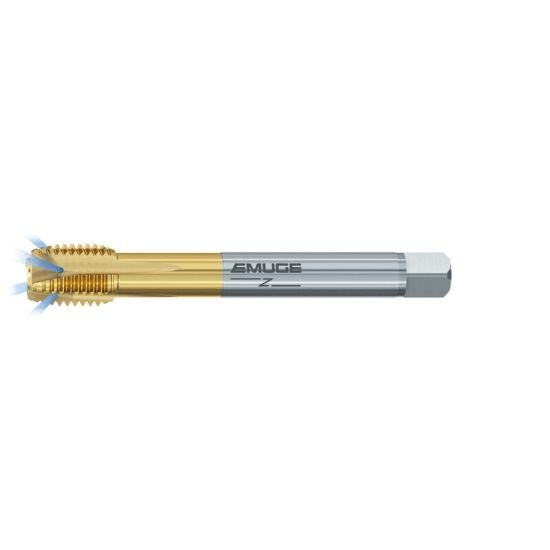

Picture of Emuge C1088F01.0120 Tap Plug M20-2.50mm 6H Metric DIN/DIn Coolant HSSE-Powder Metal TiN

Emuge C1088F01.0120 Tap Plug M20-2.50mm 6H Metric DIN/DIn Coolant HSSE-Powder Metal TiN

Part Number: EMUC1088F01.0120 ISO: C1088F01.0120
Looking for alternatives…
Find a drill for this tap M20 × 2.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1156182
Vendor: Sussex Tool and Supply
$312.63

Description

EMUGE C1088F01.0120 M20x2.50MM Cut Spiral Point Plug 4P-5P HSSE-PM TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 5.5118 140.00MM
Shank/Pilot Dia 0.6290 15.98MM
Flutes/Inserts 4
Thread Pitch 2.50MM
Thread Size M20
Tap Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Square 0.4890
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
