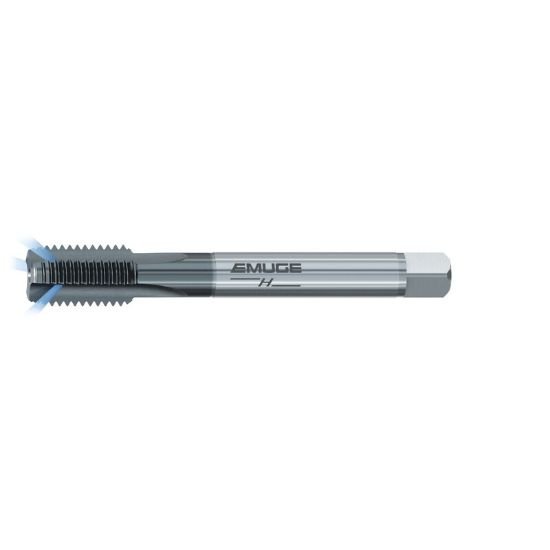

Picture of Emuge C1069101.0422 Tap Mod Bottom M20-1.50mm 6H Metric DIN/DIn Coolant HSSE TiCN

Emuge C1069101.0422 Tap Mod Bottom M20-1.50mm 6H Metric DIN/DIn Coolant HSSE TiCN

Part Number: EMUC1069101.0422 ISO: C1069101.0422

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156252
Vendor: Sussex Tool and Supply
$291.05
EMUGE C1069101.0422 M20x1.50MM Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Coating TICN
Overall Length 4.9213 125.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6290 15.98MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M20
Thread Limit 6H
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.7299 18.54MM - 0.7413 18.83MM
Tap Square 0.4890
Tap Chamfer 2.0P-3.0P
