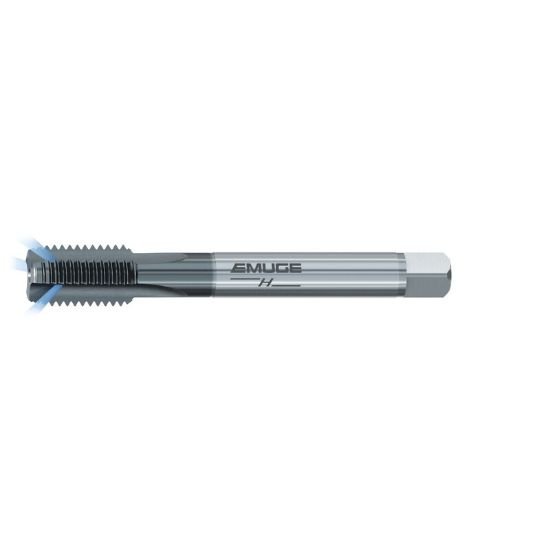

Picture of Emuge C1069101.0331 Tap Mod Bottom M14-1.50mm 6H Metric DIN/DIn Coolant HSSE TiCN

Emuge C1069101.0331 Tap Mod Bottom M14-1.50mm 6H Metric DIN/DIn Coolant HSSE TiCN

Part Number: EMUC1069101.0331 ISO: C1069101.0331
Looking for alternatives…
Find a drill for this tap M14 × 1.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1156250
Vendor: Sussex Tool and Supply
$238.88

Description

EMUGE C1069101.0331 M14x1.50MM Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4330 11.00MM
Thread Pitch 1.50MM
Thread Size M14
Tap Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Tap Square 0.3220
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DIN/DIN
