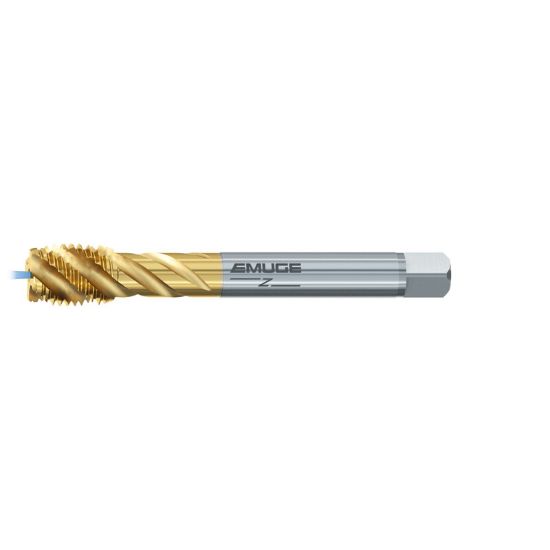

EMUGE C0973700.0359 Tap Bottoming M16-1.50MM 6H Metric DIN/DIN Coolant HSSE TiN

ISO: C0973700.0359

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0973700.0359
Delivery date: 3-5 days
$182.72

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Dimension Standard DIN/DIN
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Size M16
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Length Type Standard
Tap Type Bottoming
Thread Pitch 1.50MM
Tool Material Steel
Tap Square 0.3600
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
