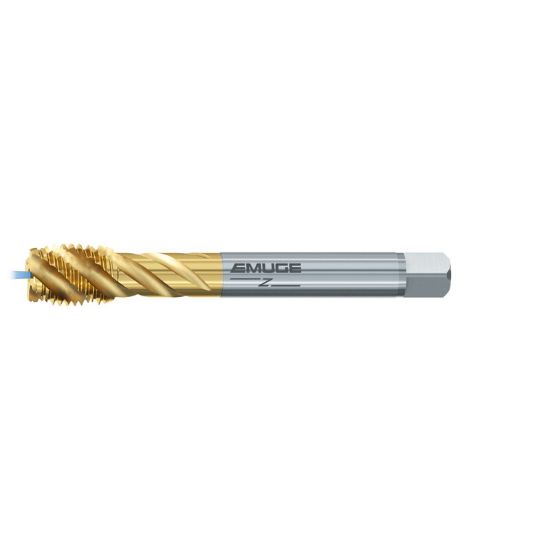

EMUGE C0973700.0116 Tap Bottoming M16-2.00MM 6H Metric DIN/DIN Coolant HSSE TiN

ISO: C0973700.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0973700.0116
Delivery date: 3-5 days
$180.92

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Standard DIN/DIN
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 2.00MM
Thread Size M16
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Length Type Standard
Tap Type Bottoming
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 4.3307 110.00MM
Flutes/Inserts 4
Machine Side Connection Type Tap Collet
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Tap Square 0.3600
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
