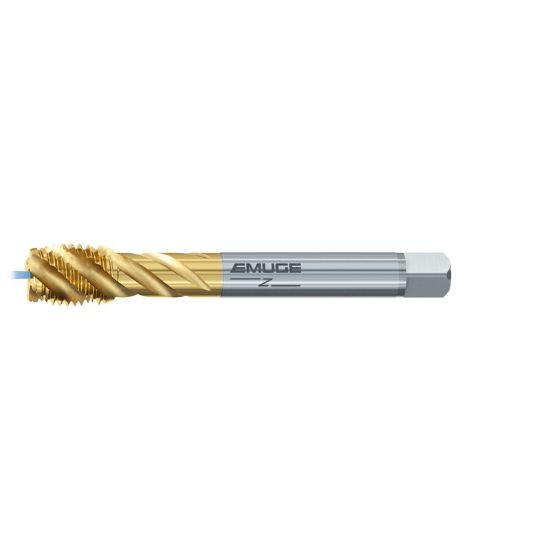

Picture of Emuge C0973700.0114 Tap Bottoming M14-2.00mm 6H Metric DIN/DIn Coolant HSSE TiN

Emuge C0973700.0114 Tap Bottoming M14-2.00mm 6H Metric DIN/DIn Coolant HSSE TiN

Part Number: EMUC0973700.0114 ISO: C0973700.0114

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1155980
Vendor: Sussex Tool and Supply
$186.62
EMUGE C0973700.0114 M14x2.00MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 4.3307 110.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4330 11.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M14
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Tap Chamfer 1.5P-2.0P
