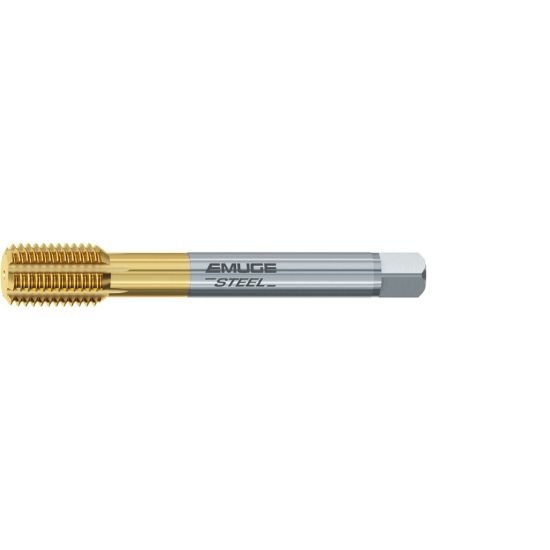

Picture of Emuge C0921400.0116 Tap Mod Bottom M16-2.00mm 6H Metric DIN/DIn HSSE TiN

Emuge C0921400.0116 Tap Mod Bottom M16-2.00mm 6H Metric DIN/DIn HSSE TiN

Part Number: EMUC0921400.0116 ISO: C0921400.0116
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$197.69
SKU: 1156981

Description

EMUGE C0921400.0116 M16x2.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.3307 110.00MM
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 2.00MM
Thread Size M16
Tap Drill Range 0.5898 14.98MM - 0.6004 15.25MM
Tap Square 0.3540
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
