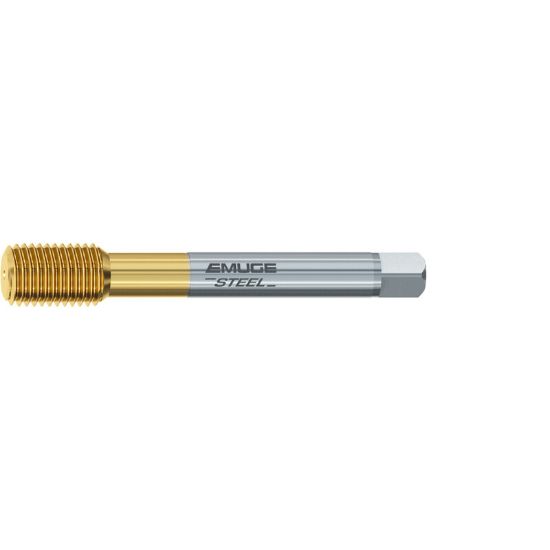

EMUGE C0911400.4035 Tap 1/8-28.00TPI Pipe Whitworth DIN/DIN 2.0P-3.0P HSSE TiN

ISO: C0911400.4035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0911400.4035
Delivery date: 3-5 days
$149.99

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Pipe Tapping, Tapping, Roll Form Tapping
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tool Material Steel
Length Type Standard
Thread Type Whitworth
Overall Len 3.5433 90.00MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Drill Range 0.3642 9.25MM
Thread Limit PIPE
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2750 6.99MM
Thread Size 1/8"
Flute Direction STRAIGHT
Tap Type Pipe
Thread Pitch 28.00TPI
Dimension Standard DIN/DIN
Tap Square 0.2160
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
