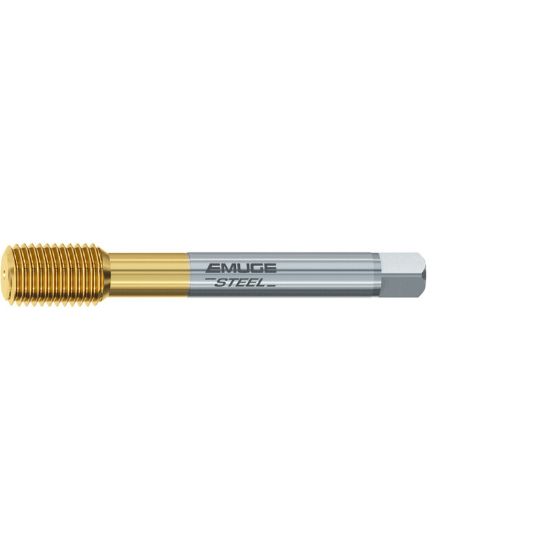

EMUGE C0911400.0359 Tap Mod Bottom M16-1.50MM 6H Metric DIN/DIN HSSE TiN

ISO: C0911400.0359

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0911400.0359
Delivery date: 3-5 days
$208.70

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Package Size 1
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Size M16
Thread Pitch 1.50MM
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Shank/Pilot Dia 0.4720 11.99MM
Thread Type Metric
Flute Direction STRAIGHT
Dimension Standard DIN/DIN
Tap Square 0.3540
Tool Material Steel
Drill Range 0.6000 15.24MM - 0.6079 15.44MM
Thread Limit 6H
Cut Rating <40HRC Steel
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
