  • EMUGE C0911400.0331 Tap Mod Bottom M14-1.50MM 6H Metric DIN/DIN HSSE TiN

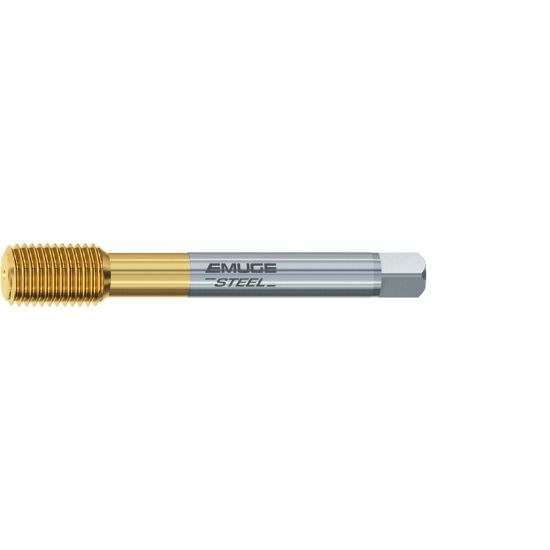

Picture of EMUGE C0911400.0331 Tap Mod Bottom M14-1.50MM 6H Metric DIN/DIN HSSE TiN

EMUGE C0911400.0331 Tap Mod Bottom M14-1.50MM 6H Metric DIN/DIN HSSE TiN

ISO: C0911400.0331

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0911400.0331
Delivery date: 3-5 days
$180.08

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Coating TiN
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Length Type Standard
Tap Style Roll Form
Flute Direction STRAIGHT
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Square 0.3540
Thread Size M14
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Dimension Standard DIN/DIN
Thread Type Metric
Shank/Pilot Dia 0.4330 11.00MM
Thread Limit 6H
Drill Range 0.5213 13.24MM - 0.5291 13.44MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
