  • EMUGE C0911400.0303 Tap Mod Bottom M12-1.50MM 6H Metric DIN/DIN HSSE TiN

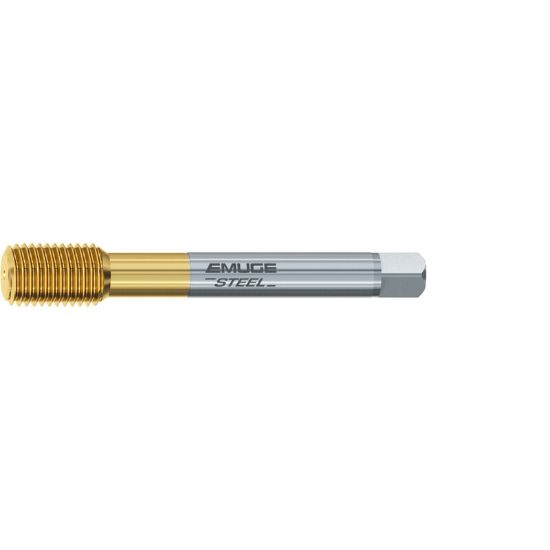

Picture of EMUGE C0911400.0303 Tap Mod Bottom M12-1.50MM 6H Metric DIN/DIN HSSE TiN

EMUGE C0911400.0303 Tap Mod Bottom M12-1.50MM 6H Metric DIN/DIN HSSE TiN

ISO: C0911400.0303

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0911400.0303
Delivery date: 3-5 days
$139.21

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Drill Range 0.4425 11.24MM - 0.4504 11.44MM
Length Type Standard
Tap Style Roll Form
Thread Type Metric
Flute Direction STRAIGHT
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M12
Tap Square 0.2950
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
