  • EMUGE C0911400.0116 Tap Mod Bottom M16-2.00MM 6H Metric DIN/DIN HSSE TiN

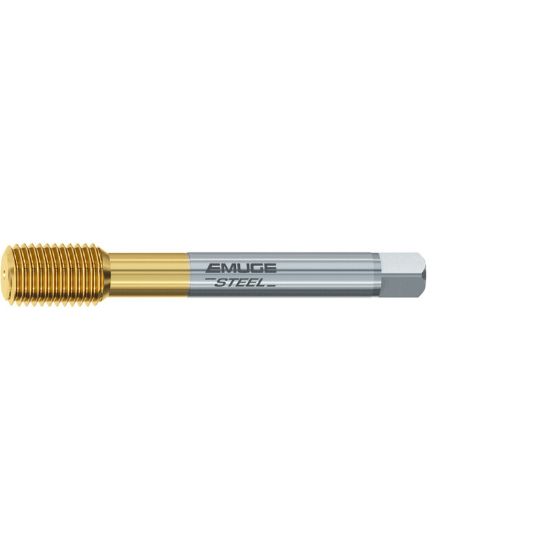

Picture of EMUGE C0911400.0116 Tap Mod Bottom M16-2.00MM 6H Metric DIN/DIN HSSE TiN

EMUGE C0911400.0116 Tap Mod Bottom M16-2.00MM 6H Metric DIN/DIN HSSE TiN

ISO: C0911400.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0911400.0116
Delivery date: 3-5 days
$162.29

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 2.00MM
Flute Direction STRAIGHT
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Square 0.3540
Tool Material Steel
Thread Limit 6H
Overall Len 4.3307 110.00MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Size M16
Length Type Standard
Drill Range 0.5898 14.98MM - 0.6004 15.25MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
