  • EMUGE C0911400.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE TiN

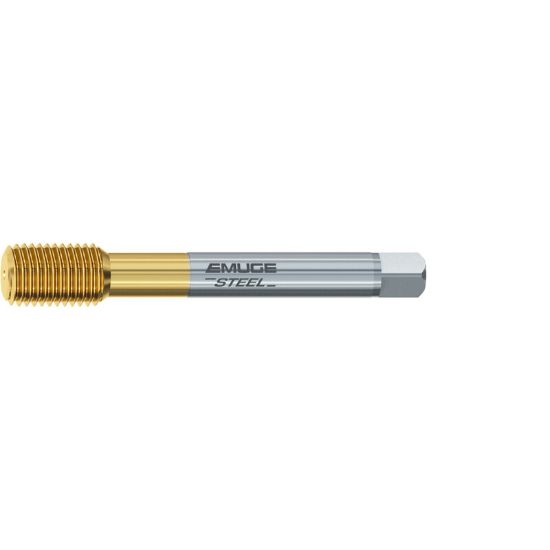

Picture of EMUGE C0911400.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE TiN

EMUGE C0911400.0112 Tap Mod Bottom M12-1.75MM 6H Metric DIN/DIN HSSE TiN

ISO: C0911400.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0911400.0112
Delivery date: 3-5 days
$97.28

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Made In USA No
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Coating TiN
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Limit 6H
Cut Rating <40HRC Steel
Tap Square 0.2750
Tap Type Mod Bottom
Tool Material Steel
Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Length Type Standard
Thread Type Metric
Flute Direction STRAIGHT
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Overall Len 4.3307 110.00MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
