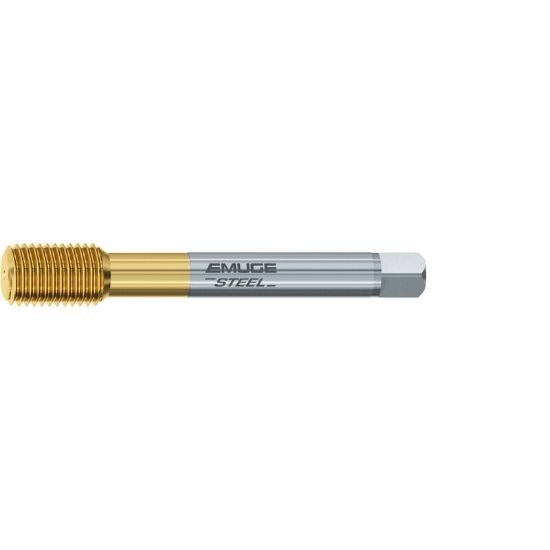

Picture of Emuge C0911400.4038 Tap 1/2-14.00TPI Pipe Whitworth DIN/DIn 2.0P-3.0P Carbide HSSE TiN

Emuge C0911400.4038 Tap 1/2-14.00TPI Pipe Whitworth DIN/DIn 2.0P-3.0P Carbide HSSE TiN

Part Number: EMUC0911400.4038 ISO: C0911400.4038

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157195
Vendor: Sussex Tool and Supply
$383.86
EMUGE C0911400.4038 1/2"x14.00TPI Roll Form Pipe 2.0P-3.0P HSSE TiN PIPE Whitworth Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 4.9213 125.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6290 15.98MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type Whitworth
Flute Direction STRAIGHT
Thread Size 1/2"
Thread Limit PIPE
Tap Style Roll Form
Tap Type Pipe
Dimension Standard DIN/DIN
Tap Drill Range 0.7913 20.10MM
Tap Square 0.4720
Tap Chamfer 2.0P-3.0P
