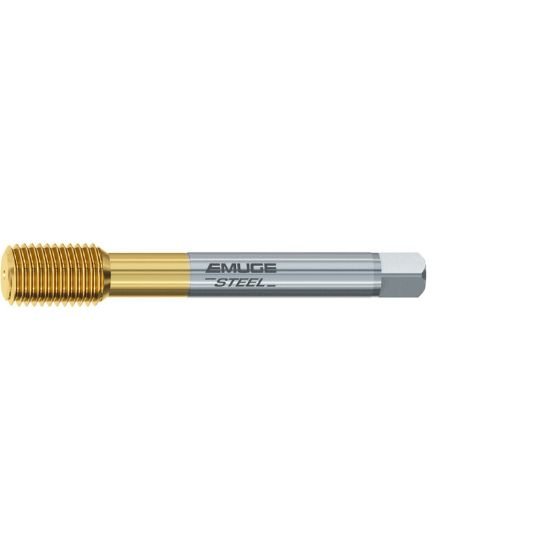

Picture of Emuge C0911400.4037 Tap 3/8-19.00TPI Pipe Whitworth DIN/DIn 2.0P-3.0P Carbide HSSE TiN

Emuge C0911400.4037 Tap 3/8-19.00TPI Pipe Whitworth DIN/DIn 2.0P-3.0P Carbide HSSE TiN

Part Number: EMUC0911400.4037 ISO: C0911400.4037
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$312.56
SKU: 1157194

Description

EMUGE C0911400.4037 3/8"x19.00TPI Roll Form Pipe 2.0P-3.0P HSSE TiN PIPE Whitworth Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type Whitworth
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 19.00TPI
Thread Size 3/8"
Tap Drill Range 0.6319 16.05MM
Tap Square 0.3540
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
