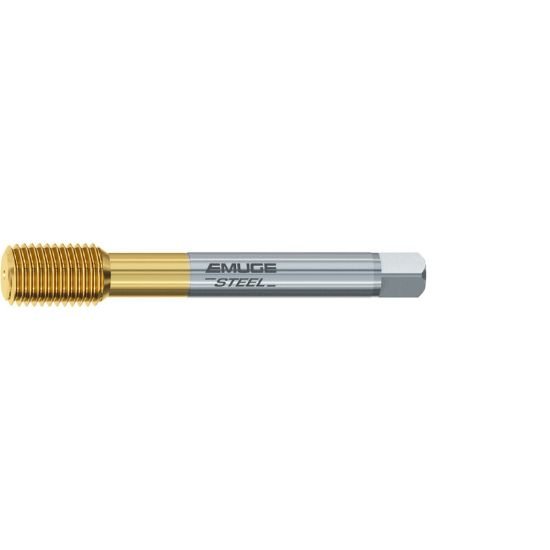

Picture of Emuge C0911400.0422 Tap Mod Bottom M20-1.50mm 6H Metric DIN/DIn HSSE TiN

Emuge C0911400.0422 Tap Mod Bottom M20-1.50mm 6H Metric DIN/DIn HSSE TiN

Part Number: EMUC0911400.0422 ISO: C0911400.0422
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$295.33
SKU: 1156979

Description

EMUGE C0911400.0422 M20x1.50MM Roll Form Mod Bottom 2.0P-3.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.9213 125.00MM
Shank/Pilot Dia 0.6290 15.98MM
Thread Pitch 1.50MM
Thread Size M20
Tap Drill Range 0.7594 19.29MM - 0.7654 19.44MM
Tap Square 0.4720
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
