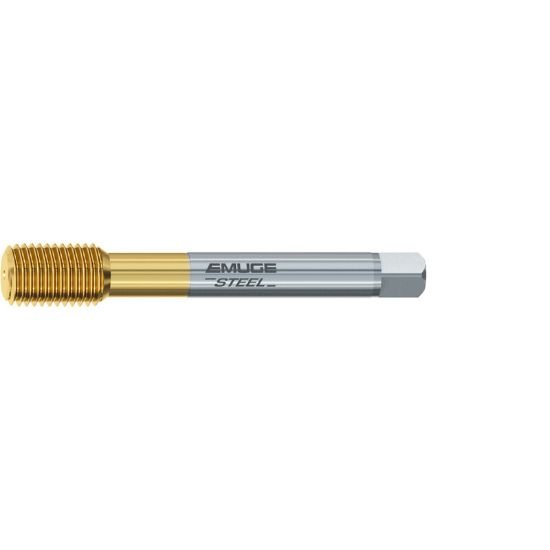

Picture of Emuge C0911400.0303 Tap Mod Bottom M12-1.50mm 6H Metric DIN/DIn HSSE TiN

Emuge C0911400.0303 Tap Mod Bottom M12-1.50mm 6H Metric DIN/DIn HSSE TiN

Part Number: EMUC0911400.0303 ISO: C0911400.0303
Looking for alternatives…
Find a drill for this tap M12 × 1.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1156976
Vendor: Sussex Tool and Supply
$163.73

Description

EMUGE C0911400.0303 M12x1.50MM Roll Form Mod Bottom 2.0P-3.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3540 8.99MM
Thread Pitch 1.50MM
Thread Size M12
Tap Drill Range 0.4425 11.24MM - 0.4504 11.44MM
Tap Square 0.2950
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
