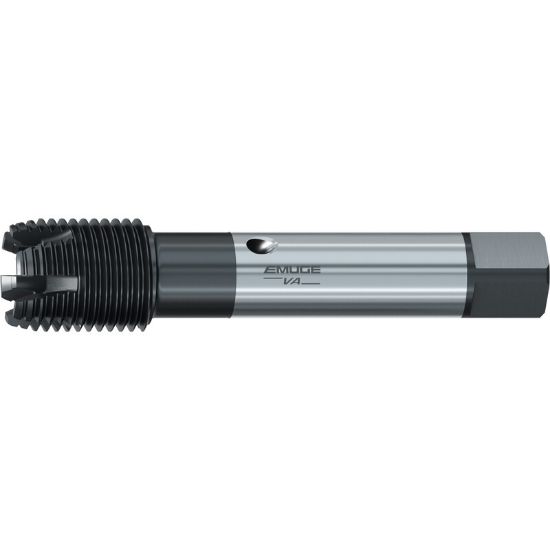

EMUGE C0803001.0758 Tap M95-6.00MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSS HSSE Oxide + TiN

ISO: C0803001.0758

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0803001.0758
Delivery date: 3-5 days
$5,536.32

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping, Blind Hole Tapping
Coating Oxide + TiN
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Length Type Standard
Tool Material Steel
Overall Len 15.7480 400.00MM
Tap Square 1.7320
Dimension Standard DIN/DIN
Thread Size M95
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Thread Pitch 6.00MM
Flute Direction STRAIGHT
Shank/Pilot Dia 2.2040 55.98MM
Thread Type Metric
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Drill Range 3.5039 89.00MM
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Energy Yes
Agricultural YES
