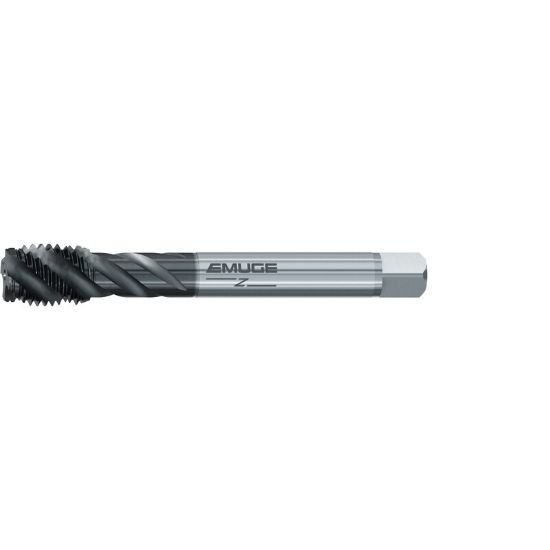

Picture of Emuge C051C400.0359 Tap M16-1.50mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE GLT-1

Emuge C051C400.0359 Tap M16-1.50mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE GLT-1

Part Number: EMUC051C400.0359 ISO: C051C400.0359

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156513
Vendor: Sussex Tool and Supply
$229.66
EMUGE C051C400.0359 M16x1.50MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating GLT-1
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4720 11.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M16
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Tap Square 0.3600
Tap Chamfer 1.5P-2.0P
