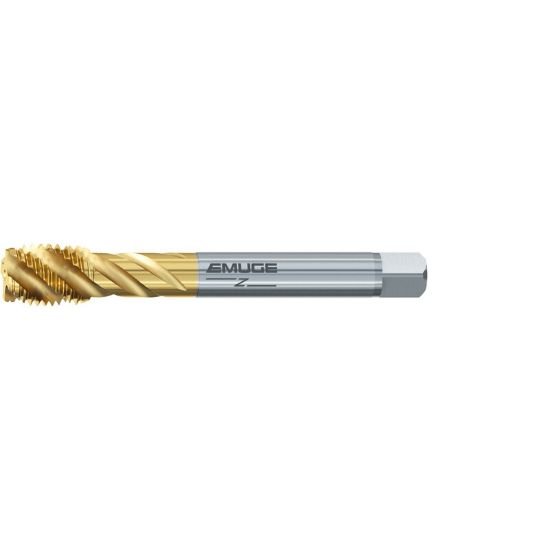

Picture of Emuge C0513700.4037 Tap 3/8-19.00TPI Pipe BSP DIN/DIn 1.5P-2.0P HSS HSSE TiN

Emuge C0513700.4037 Tap 3/8-19.00TPI Pipe BSP DIN/DIn 1.5P-2.0P HSS HSSE TiN

Part Number: EMUC0513700.4037 ISO: C0513700.4037

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157840
Vendor: Sussex Tool and Supply
$178.11
EMUGE C0513700.4037 3/8"x19.00TPI Pipe Spiral Flute Pipe 1.5P-2.0P HSSE TiN PIPE BSP Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4720 11.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 19.00TPI
Thread Type BSP
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard DIN/DIN
Tap Drill Range 0.6004 15.25MM
Tap Square 0.3540
Tap Chamfer 1.5P-2.0P
