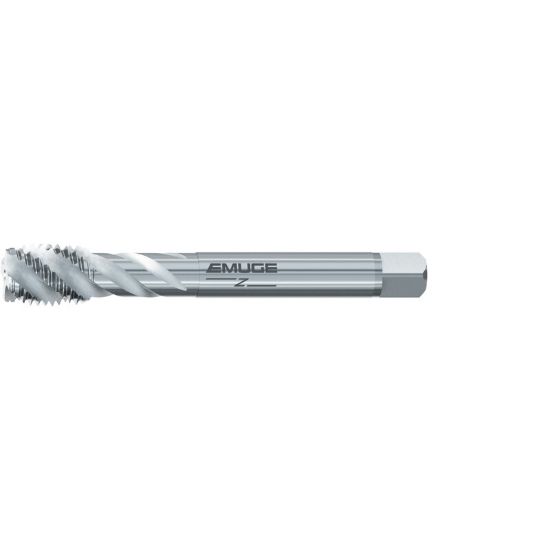

EMUGE C0513500.4037 Tap 3/8-19.00TPI Pipe BSP DIN/DIN 1.5P-2.0P Carbide HSSE

ISO: C0513500.4037

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0513500.4037
Delivery date: 3-5 days
$133.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Tap Chamfer 1.5P-2.0P
Tap Type Pipe
Thread Pitch 19.00TPI
Tool Material Steel
Dimension Standard DIN/DIN
Drill Range 0.6004 15.25MM
Tap Square 0.3540
Thread Type BSP
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Size 3/8"
Tap Style Pipe Spiral Flute
Shank/Pilot Dia 0.4720 11.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
