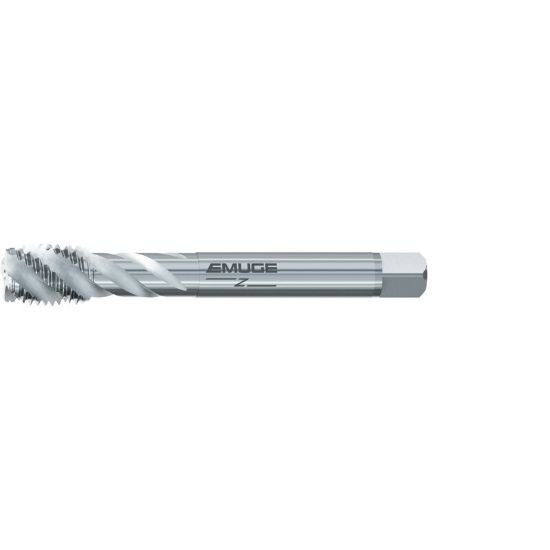

Picture of Emuge C0513500.4042 Tap 1-11.00TPI Pipe BSP DIN/DIn 1.5P-2.0P HSSE

Emuge C0513500.4042 Tap 1-11.00TPI Pipe BSP DIN/DIn 1.5P-2.0P HSSE

Part Number: EMUC0513500.4042 ISO: C0513500.4042

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157837
Vendor: Sussex Tool and Supply
$423.29
EMUGE C0513500.4042 1"x11.00TPI Pipe Spiral Flute Pipe 1.5P-2.0P HSSE Uncoated PIPE BSP Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 6.2992 160.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9840 24.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 11.00TPI
Thread Type BSP
Flute Direction RIGHT
Thread Size 1"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard DIN/DIN
Tap Drill Range 1.2106 30.75MM
Tap Square 0.7870
Tap Chamfer 1.5P-2.0P
