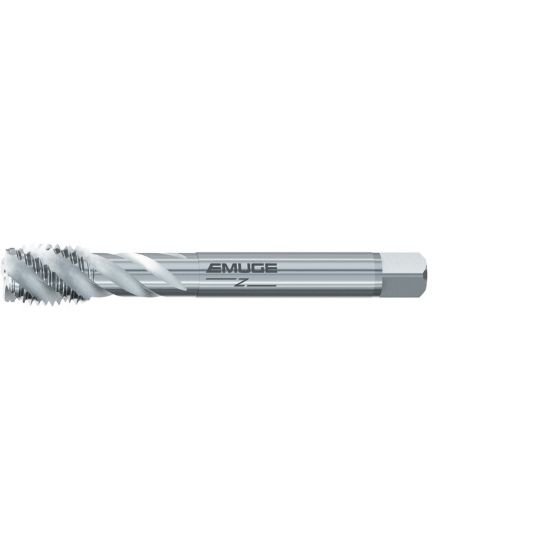

Picture of Emuge C0513500.1060 Tap M16-2.00mm Bottoming LK-M DIN/DIn 1.5P-2.0P Cobalt HSSE

Emuge C0513500.1060 Tap M16-2.00mm Bottoming LK-M DIN/DIn 1.5P-2.0P Cobalt HSSE

Part Number: EMUC0513500.1060 ISO: C0513500.1060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158544
Vendor: Sussex Tool and Supply
$194.92
EMUGE C0513500.1060 M16x2.00MM Spiral Lock Bottoming 1.5P-2.0P HSSE Uncoated BT LK-M Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4720 11.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type LK-M
Flute Direction RIGHT
Thread Size M16
Thread Limit BT
Tap Style Spiral Lock
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.6496 16.50MM
Tap Square 0.4330
Tap Chamfer 1.5P-2.0P
