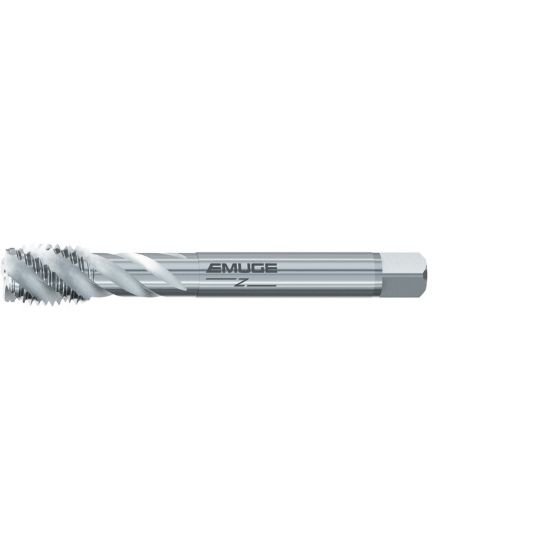

Picture of Emuge C0513500.0303 Tap M12-1.50mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE

Emuge C0513500.0303 Tap M12-1.50mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE

Part Number: EMUC0513500.0303 ISO: C0513500.0303

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156493
Vendor: Sussex Tool and Supply
$96.03
EMUGE C0513500.0303 M12x1.50MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3540 8.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Tap Square 0.2750
Tap Chamfer 1.5P-2.0P
