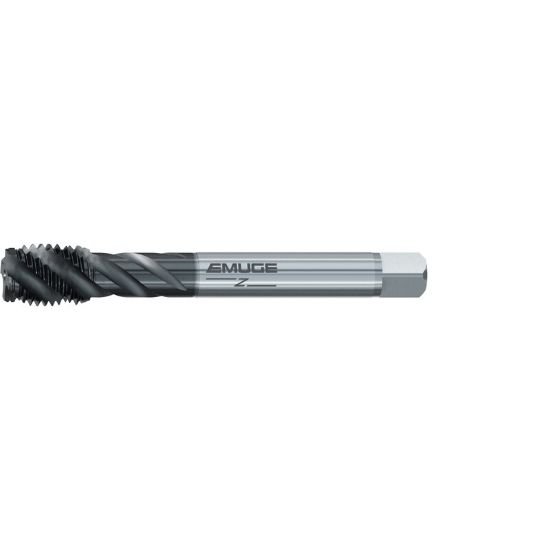

Picture of Emuge C050C400.0118 Tap M18-2.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE GLT-1

Emuge C050C400.0118 Tap M18-2.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE GLT-1

Part Number: EMUC050C400.0118 ISO: C050C400.0118

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156544
Vendor: Sussex Tool and Supply
$233.81
EMUGE C050C400.0118 M18x2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating GLT-1
Overall Length 4.9213 125.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5510 14.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M18
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Tap Square 0.3600
Tap Chamfer 2.0P-3.0P
