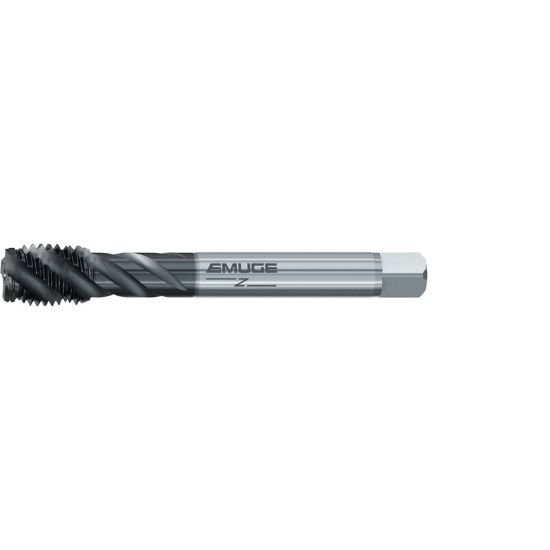

Picture of Emuge C050C400.0114 Tap M14-2.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE GLT-1

Emuge C050C400.0114 Tap M14-2.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE GLT-1

Part Number: EMUC050C400.0114 ISO: C050C400.0114

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156542
Vendor: Sussex Tool and Supply
$159.16
EMUGE C050C400.0114 M14x2.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating GLT-1
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4330 11.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M14
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Tap Chamfer 2.0P-3.0P
