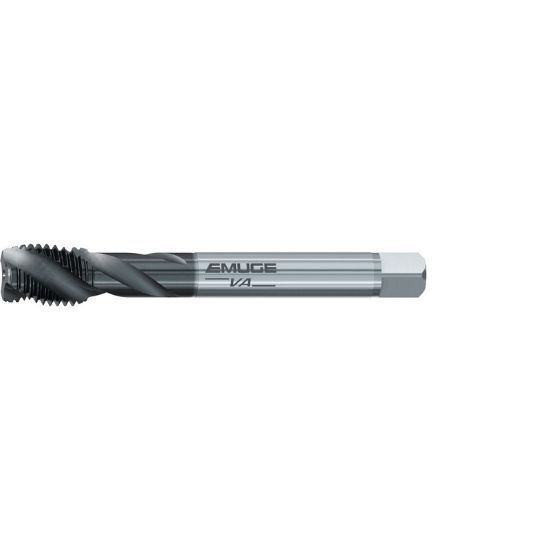

EMUGE C050C300.0453 Tap M24-2.00MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSS HSSE GLT-1

ISO: C050C300.0453

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC050C300.0453
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating GLT-1
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Overall Len 6.2992 160.00MM
Tap Type Mod Bottom
Thread Pitch 2.00MM
Cut Rating <42HRC Steel, Stainless Steel
Thread Size M24
Tool Material Steel
Drill Range 0.8630 21.92MM - 0.8835 22.44MM
Tap Square 0.5700
Length Type Standard
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Shank/Pilot Dia 0.7600 19.30MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
