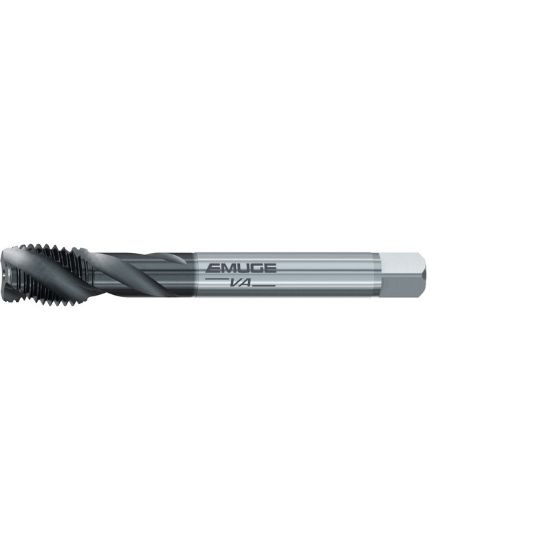

EMUGE C050C300.0301 Tap M12-1.00MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSS HSSE GLT-1

ISO: C050C300.0301

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC050C300.0301
Delivery date: 3-5 days
$149.33

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Coating GLT-1
Dimensional Specifications
Overall Len 4.3307 110.00MM
Length Type Standard
Thread Limit 6H
Drill Range 0.4315 10.96MM - 0.4417 11.22MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size M12
Dimension Standard DIN/DIN
Thread Type Metric
Shank/Pilot Dia 0.3540 8.99MM
Tool Material Steel
Thread Pitch 1.00MM
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
