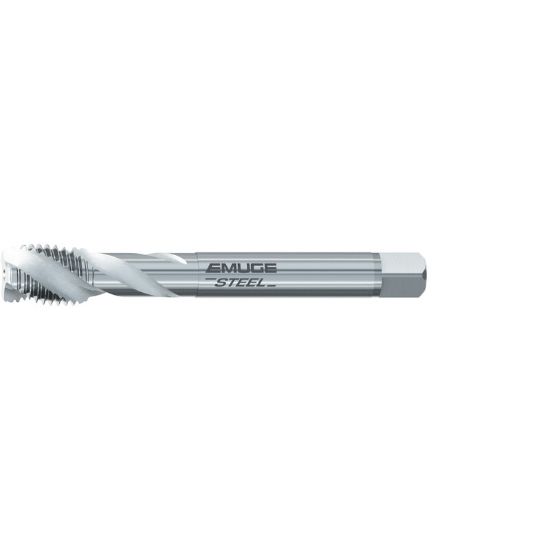

EMUGE C0501030.0124 Tap Mod Bottom M24-3.00MM 7G Metric DIN/DIN HSSE

ISO: C0501030.0124

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0501030.0124
Delivery date: 3-5 days
$225.50

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Shank/Pilot Dia 0.7080 17.98MM
Thread Size M24
Thread Pitch 3.00MM
Tool Material Steel
Drill Range 0.8087 20.54MM - 0.8201 20.83MM
Tap Square 0.5700
Overall Len 6.2992 160.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit 7G
Flute Direction R - Right
Length Type Standard
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
