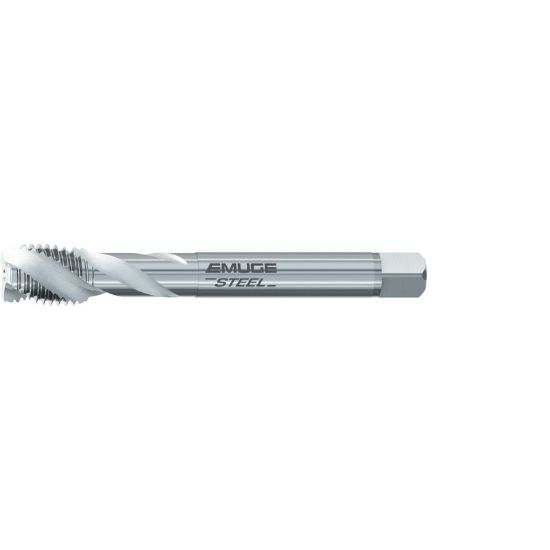

EMUGE C0501020.0114 Tap Mod Bottom M14-2.00MM 6G Metric DIN/DIN HSSE

ISO: C0501020.0114

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUC0501020.0114
Delivery date: 3-5 days
$109.63

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Overall Len 4.3307 110.00MM
Thread Type Metric
Shank/Pilot Dia 0.4330 11.00MM
Thread Limit 6G
Dimension Standard DIN/DIN
Thread Size M14
Tool Material Steel
Length Type Standard
Thread Pitch 2.00MM
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3220
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
